Drafting Graphics Window Popup Submenus

Right-click the Graphics Pane to display the popup submenu. It is context-sensitive, so the options that appear depend on factors such as the type of file that is open, element activation state, and whether specific entities have been picked prior to activating the menu.

The following basic popup submenus are available when selecting:

• No entities
• Picked entity or cursor over entity

No entities

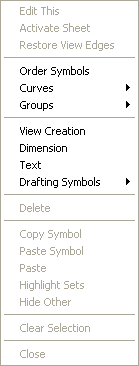

If no entities are selected, the following popup will appear when right-clicking in the general modegeneral mode(no entity is selected from the drafting toolbar) (when the cursor is placed in the graphics window):

Order Symbols Curves Groups View Creation Dimension Text Drafting Symbols

Picked entity or cursor over entity

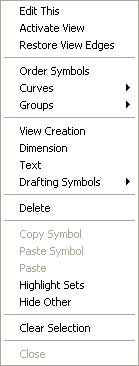

If you right-click when the cursor is placed over an entity in the general modegeneral mode(no entity is selected from the drafting toolbar), or when an entity is picked, the following popup submenu is displayed:

Edit This Activate View Restore View Edges Order Symbols Curves Groups View Creation Dimension Text Drafting Symbols Delete Highlight Sets Hide Other Clear Selection



Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
