Slope

Access: Open this function from the following location:

  • Select Faces > Modify Faces > Slope from the menu bar.

Modify the slopes at the edges of a face.

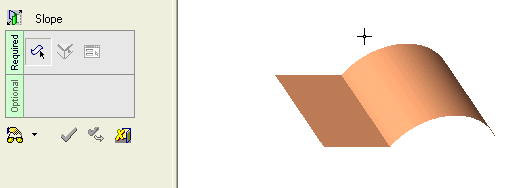

Demo: Press the button below to view a short movie demonstrating the function:

Practice: Press the button below to open Cimatron with a practice ELT file similar to that used to create the movie (if the relevant feature already exists in the ELT file, you can either edit it or delete it and create a new feature).





General Interaction

The following is the Feature Guide for Modify Slope.

   Tip: You can open the Feature Guide at any time by right-clicking the mouse in the graphic display area.

Required Step 1 : Select the face whose edge is to be modified.

Required Step 2 : Select the edge to modify.

Required Step 3 : Set the modification parameters.

Detailed Interaction

See Options and Results.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
