STRAK
Access: Open this function from one of the following locations:
-
Click the
button
from the toolbar. -
Select File > Import > Import to New File or Import to Current File from the menu bar.
When the Import dialog is displayed, select STRAK from the Files of Type field.
Import files in the STRAK format (*.strak) to Cimatron.
For a summary of the Data Interface Import/Export formats supported by Cimatron (including their CAD version numbers), see Cimatron's Import/Export Capabilities at a Glance.
Cimatron retains the settings of the data interface (Import/Export) dialog from its last use, including the menu state (expanded or collapsed) and the tab that was opened.

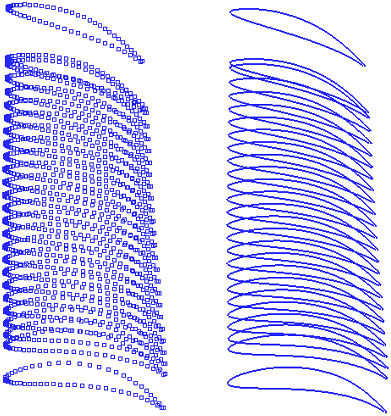

STRAK is a dat data file that contains (among other data) a list of points that describes the sections to define a blade. For example:
