Add Involved Part From Assembly

1. Click the Add Involved Part from Assembly button.

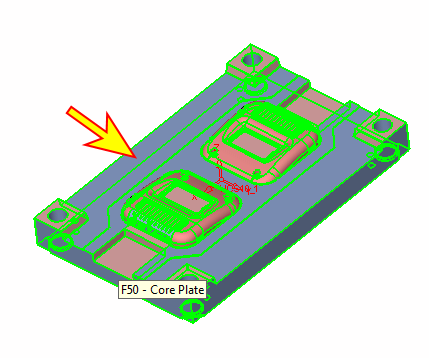

2. Select the Core plate on the screen.
   Click Exit.

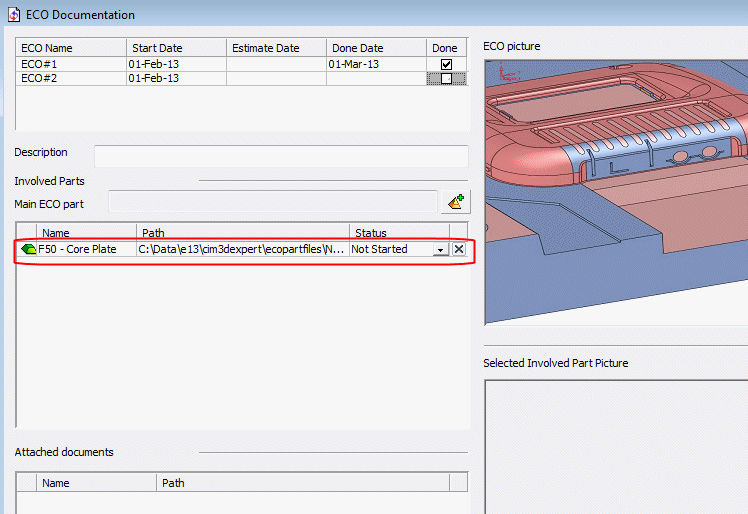

3.  The part (with location and status) was added to the Involved parts table.

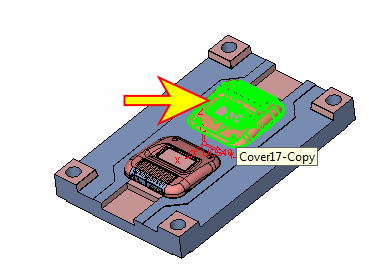

4. Show the Cover 17-Copy from the tree. Add it as an Involved Part from Assembly.

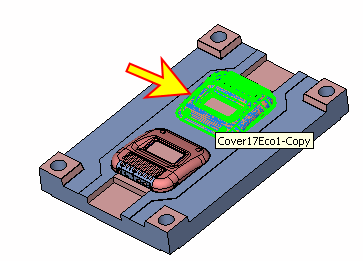

5. Add the Cover17Eco1-Copy using the same method as before.
