Analyzing the Mending Job
-
Zoom-in to the areas of changes.

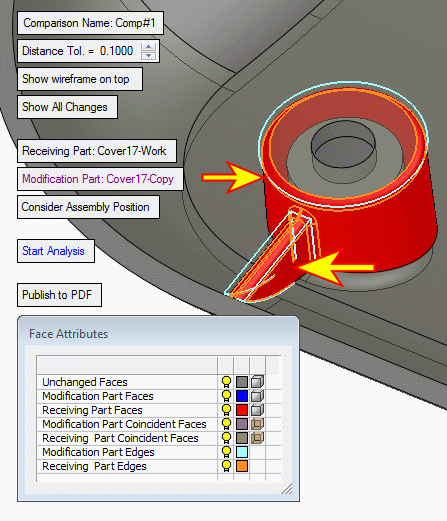

The RED faces exist in the work part (receiving part) and not in the master part (modification part). (Hide the master.)

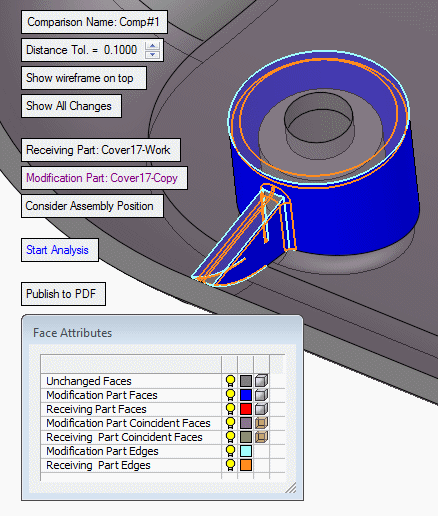

The BLUE faces exist only in the master part and not in the work part.
You may notice the draft angle and rounds applied to certain walls and edges.
The modification and receiving part edges show only edges of the actual changed faces and not of the coinciding one.
