Data To Steel Parameter Exercises

Clean Up Procedure - Limit By Holder/Shank

1. View the 5th procedure (RM_Cleanup-14).

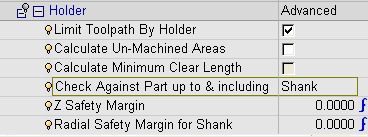

2. Edit the procedure. Expand the Holder branch as shown in the following image:

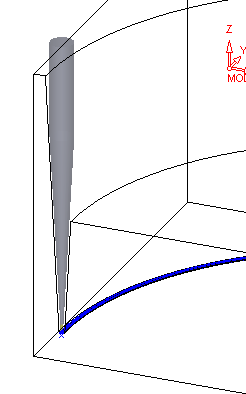

When the shank is checked against the part, the toolpath is complete.
Notice in this example, the user didn't specify safety margins (Safety Margin = 0).
