Data To Steel Parameter Exercises

Creating a CleanUp Segment Set Step 3

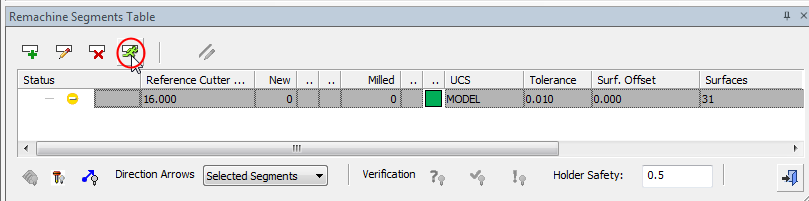

1. You can click on Save & CloseSave & Close to calculate later using Calculate Remachine SegmentsCalculate Remachine Segments.

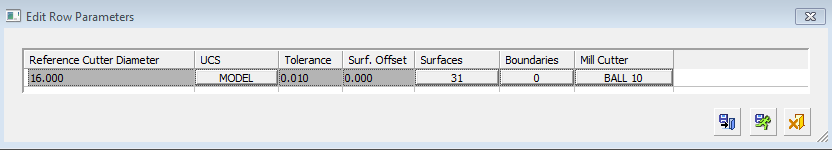

2. Alternatively click on Save & Calculate.

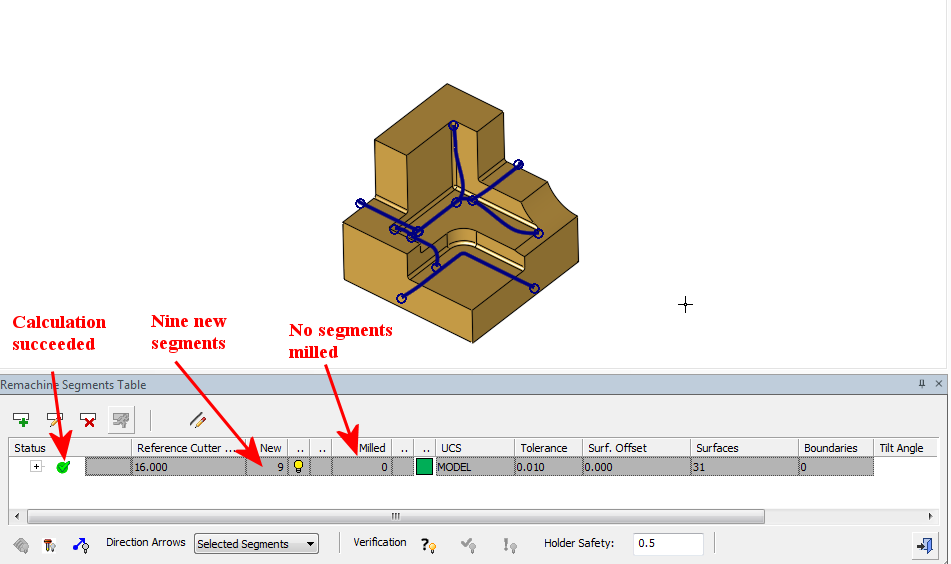

The result of the calculation is shown below.

The row status is shown as calculated successfully. Nine new segments were calculated and displayed in the graphics screen. There is a Hide/Show bulb and none of the segments are milled yet.

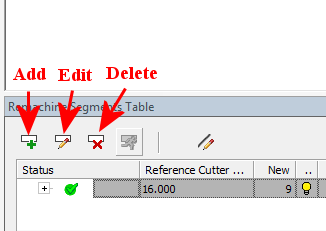

After the segment row is calculated, it is possible to:

• Add a new one with a different set of parameters and cutter.
• Edit any setting in the existing one.
• Delete it.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
