Cycles Logic 7

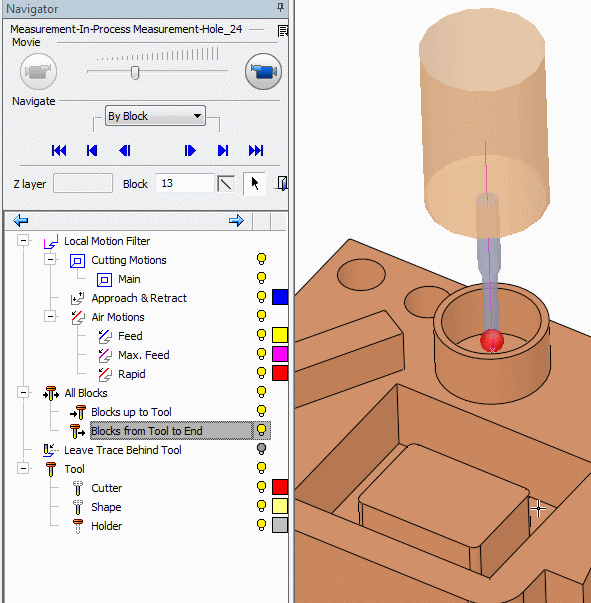

Use the Navigator to examine the motions.
It is important to understand that the navigated motions are generic. The same motions will be also seen when you simulate a Measurement procedure, because in most cases the output from such a procedure to the machine is not a set of motions but a special cycle or a macro call.
The nature of the true motions is actually determined on the machine itself, according to the way it was programmed. There are also some differences between the different controls.
What is shown in Cimatron are some motions that best represent the nature of the different cycle’s nature.
