Data To Steel Parameter Exercises

Delete 2

Offset Value

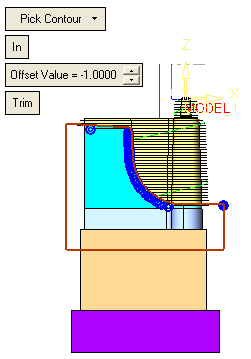

1. Set an Offset Value of -1.


   The positive offset direction is defined towards the outside of the contour. The negative offset direction is defined towards the inside of the contour.

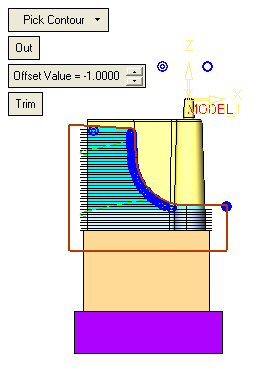

2. Out/In
   Toggle the Out/In button to see the result.


The In/Out button defines which portion of the toolpath that will be deleted (the inside or the outside).
Use the Preview to view the effect.
