Design Tips

Single Drive - Step 2

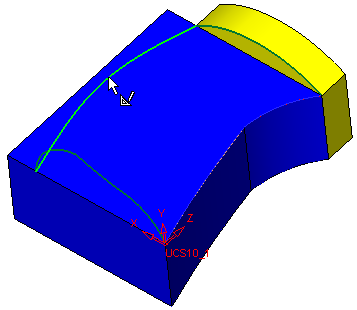

1. For the spine, pick the curve shown below. Leave the default tolerance.


2. Click OK in the Drive Feature Guide to create the drive face.

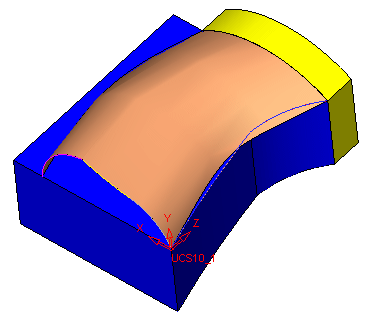

   Notice how the face follows only one spine.
