Data To Steel Parameter Exercises

Editing a Segment Row Step 10

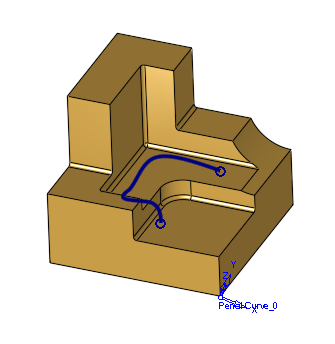

Hide the OK Segments. These are the segments that were found collision free.

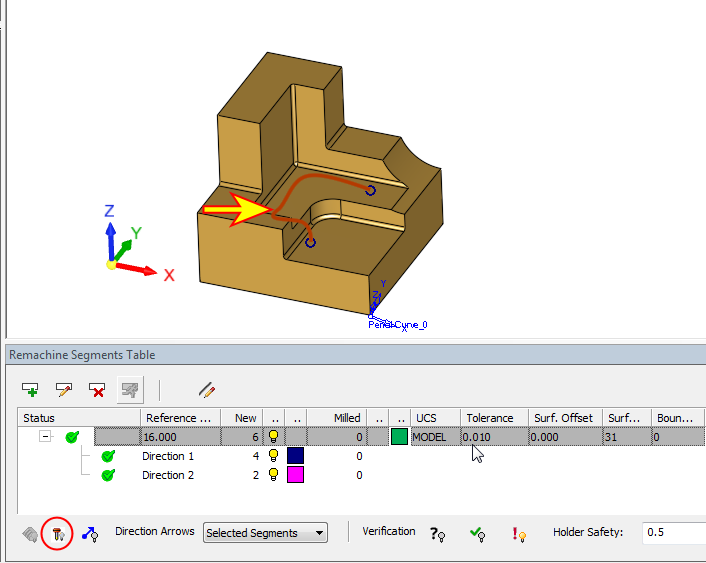

Select the only segments that were found as Gouging. Click on the Show Cutter button.

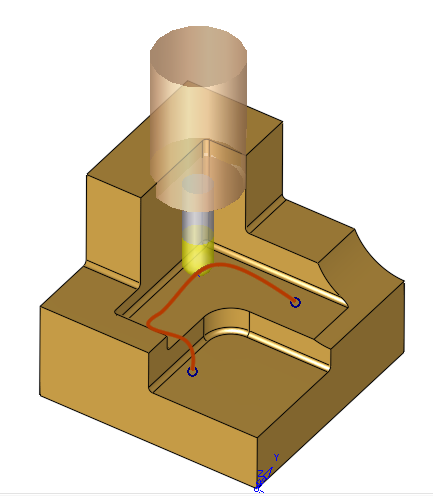

Once the cutter appears, it is obvious why this segment was found as Gouging: the holder collides.
