Data To Steel Parameter Exercises

Finish Procedure - Limit By Holder/Cutter

1. View the second procedure (F-Slope_10).

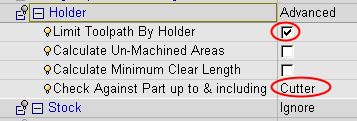

2. Edit the procedure. Expand the Holder branch as shown in the following image:


The Limit Toolpath By Holder – Checked parameter enables you to define whether or not to limit the machining by the tool holder.
When the Cutter is selected, the Cutter is checked against the part, and the Shank and/or Holder are checked against the stock.
Because the internal safety margin is greater than the gap between the part and the tool, the created toolpath is not performed (except for one pass at the top of the part).
