Finish Procedure - Limit by Holder/Shank

1. View the third procedure (F-Slope_11).

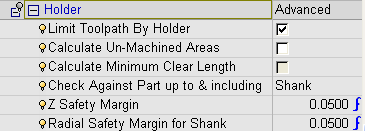

2. Edit the procedure. Expand the Holder branch as shown in the following image:

   This option enables users to define which part of the tool is checked against the part and which part is checked against the stock.
   In this case, you can set the option to check up to (and including) the shank.
   If a holder exists, the selection will be up to (and including) the holder.
   In addition, you can set the Z Safety Margin and Radial Safety Margin for the shank.
   The result is a complete toolpath that has been checked correctly against the part.
