Geodesic 7

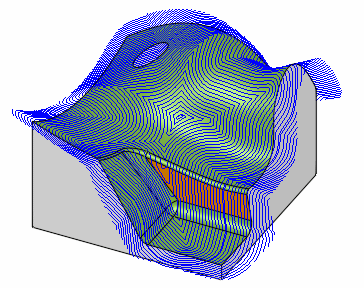

The motions pattern after execution will follow the star-like shape of the mesh geometry.

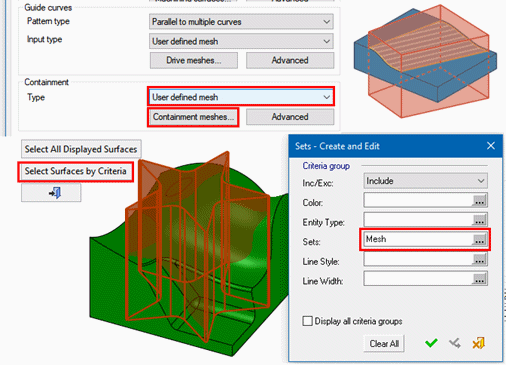

1. Edit the procedure again.

   • Set the Containment Type to User defined mesh.

   • Click the Containment meshes … button

   • Select the same Mesh set as before and Select Surfaces by Criteria.

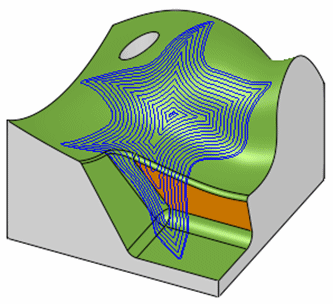

The calculation result this time will be motions, which are both guided and contained by the star-like shape.
