Design Motion Analysis

Group Definition - Step 3

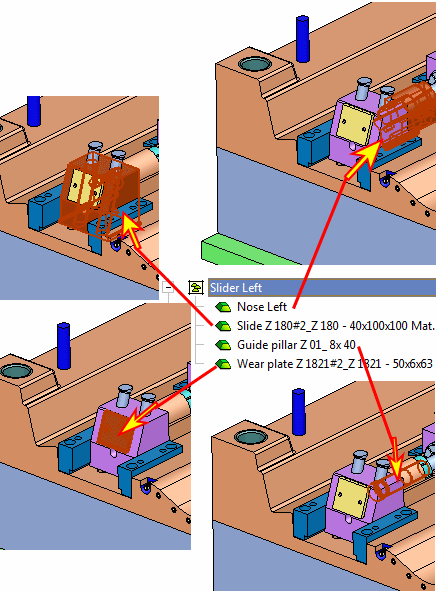

1. Drag and drop (or cut and paste) the relevant parts of each slider group.

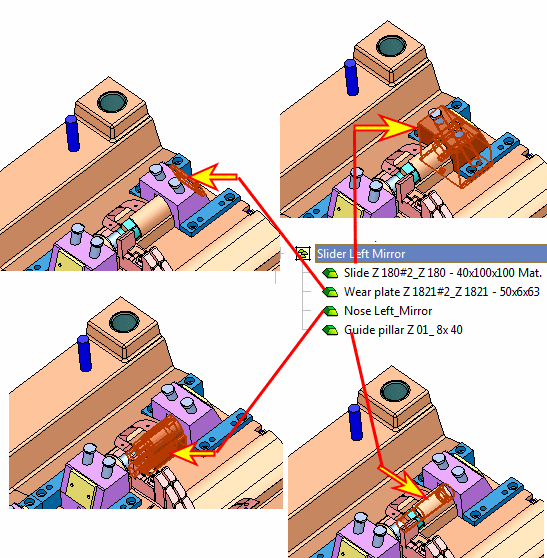

   Slider Left MirrorSlider Left Mirror

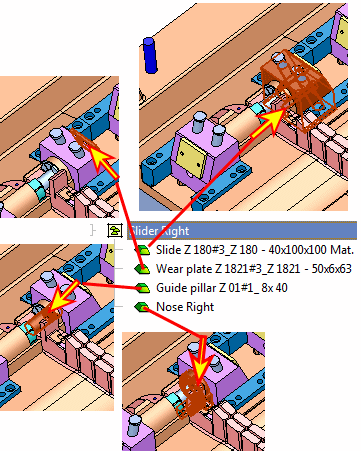

   Slider RightSlider Right

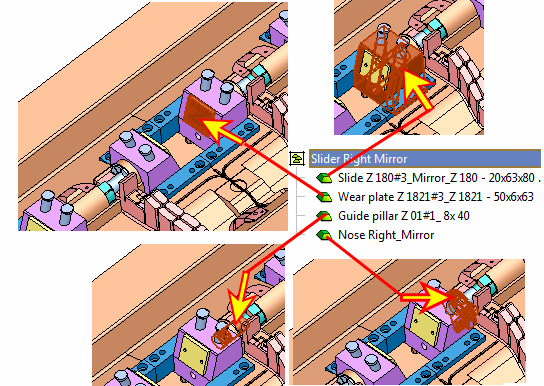

   Slider Right MirrorSlider Right Mirror

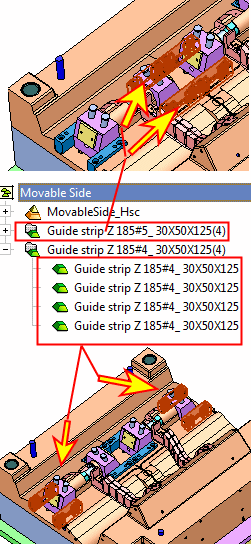

2. Move the Guide strips of the sliders to the movable side.
