Design Motion Analysis

Group Definition - Step 5

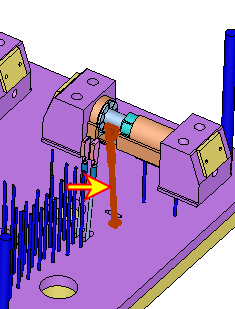

1. Create a new group named +Y Lifter, then drag and drop the relevant parts as shown below:

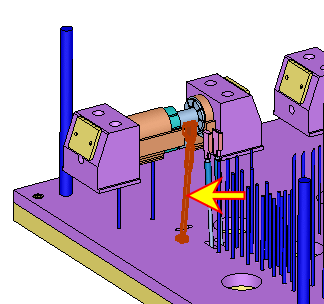

2. Create new group named -Y Lifter, then drag and drop the relevant parts as shown below:



3. Move the two guide sleeves within the Y Lifter groups to the movable side.



4. Move the guide pillars and the locking heels to the fixed side.
