Loft
-
Select Solid > Creation > Loft.
-

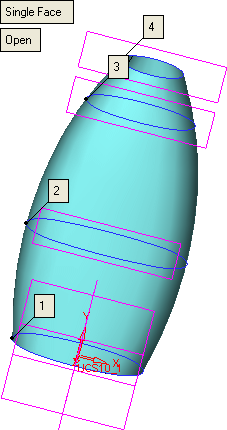

Select the four sketches as the loft sections and set the parameters as follows:
Click here for more on the Open/Close mechanism.

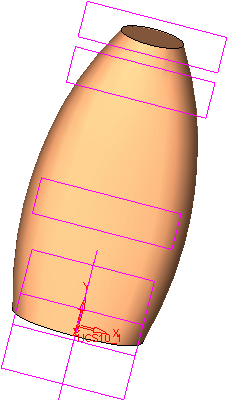

- Click OK in the Feature Guide.
|
|
|
|
