Multi Offset TP

1. View the second Finish procedure (F-All-1-none).

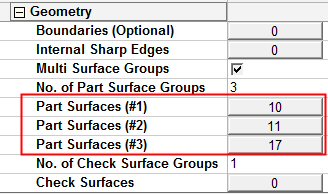

2. Edit the Procedure. Note the three different groups of part surfaces:


   Note

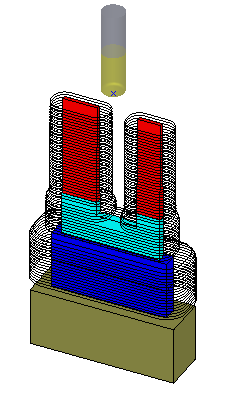

   1st group1st group for the red surfaces.



   2nd group2nd group for the light blue surfaces.



   3rd group3rd group for the blue surfaces.



   Each group has different offsets (wall and floor).

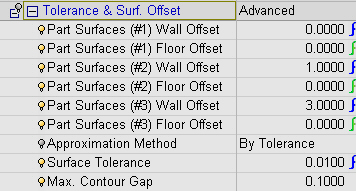

3. Expand the Tolerance & Surf. Offset leaf to see the different offset for each group.
