Data To Steel

Parameter Exercises

New Rough Direction

  1. Copy the Rough procedure and paste it after the new stock.

  2. Change the UCS of the new procedure.

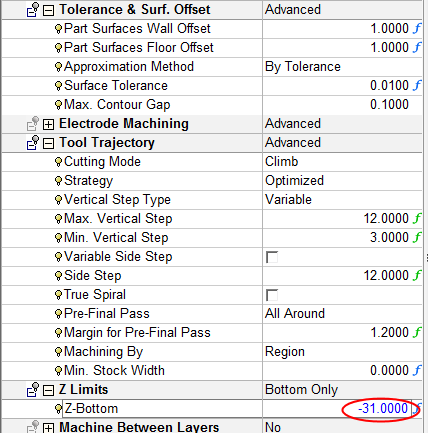

  3. Set the parameters as shown in the following image:

  4. Save & calculate the procedure.

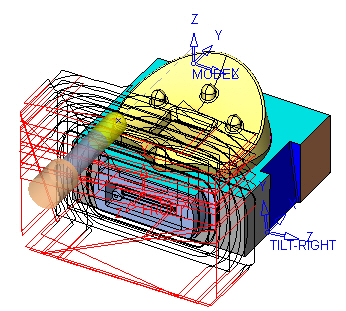

    The Rough procedure is milled using the Front UCS.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
