On Machine Inspection
On Machine Inspection 1
The On Machine Inspection procedure performs validity checks during the milling process or at the end of the process (before the part is removed from the machine).
-

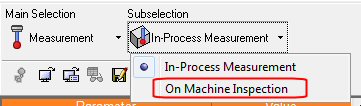

Start a new Measurement procedure. Select On Machine Inspection as the subselection.
-
Click the Cycle Data value under the Geometry or on the Measurement Cycle value in the Motion Parameters dialog to open the Measurement Cycles dialog.

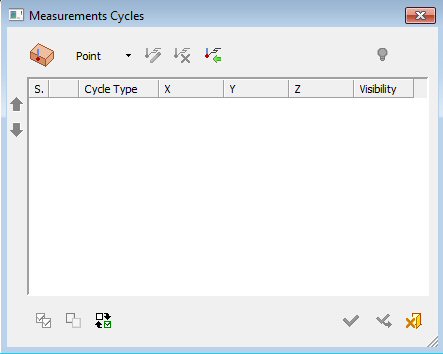

The Measurement Cycles dialog is displayed.
