Data To Steel

Parameter Exercises

Prevent Waterfall Positive Surface Offset

  1. View the F_Slope11 procedure.

  2. Edit the procedure.

  3. View the Tolerance and Surf Offset settings.

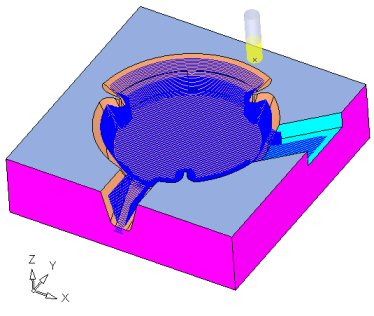

The offset for check faces (YELLOW) is set to a positive value (2* SURFACE OFFSET).
The result is under-machining (motions missing in the LIGHT BLUE wall).
