Step 11a - Sets Example

In this example, there are three sets: Cyan, Planes and Axis, and RedCyan, Planes and Axis, and Red.

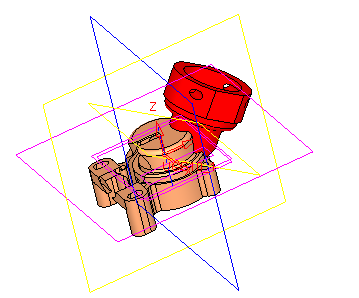

1. HideHide the Cyan set.

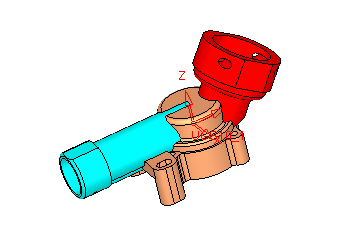

2. Show the Cyan set and hidehide the Planes and Axis set:




3. After the set(s) have been defined, save them as a template to be loaded into other documents in Cimatron.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
