Data To Steel

Parameter Exercises

Shank and Holder: Shank and Holder Ignore

Shank and Holder Ignore Step 1

  1. Load the complex_tool_start.elt file.

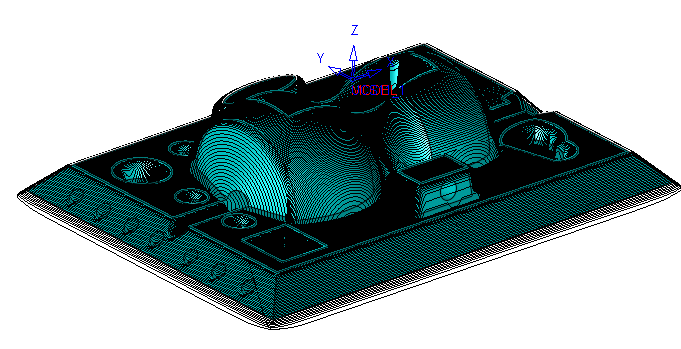

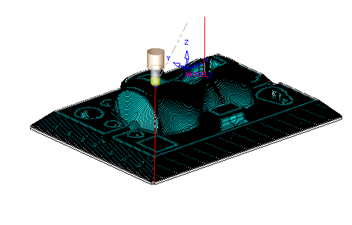

  2. Show the toolpath.

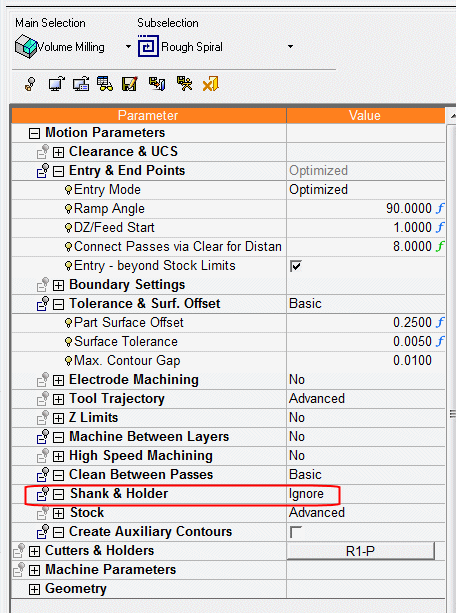

  3. Edit the procedure. Note that the Shank & Holder option is set to Ignore. The tool's motions are not limited by the shank and holder parameters.
