Design Motion Analysis

Work With Motions With Collision - Step 4

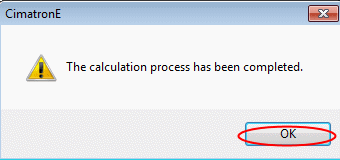

1. Click OK when the process completes.

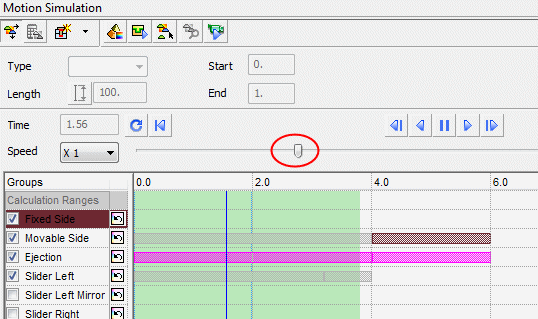

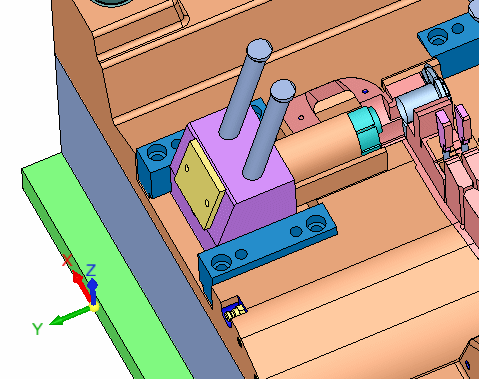

2. Use the slider or the Play button to view the simulation.

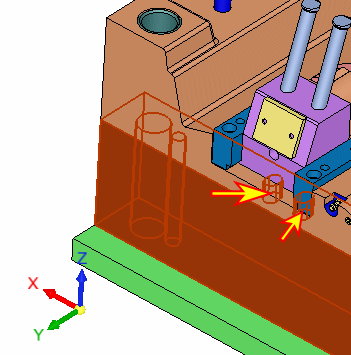

   To simulate a collision, we will edit the geometry. Notice the hole in the Rail Left part.


Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
