Design Motion Analysis

Work With Motions Without Collision - Step 5

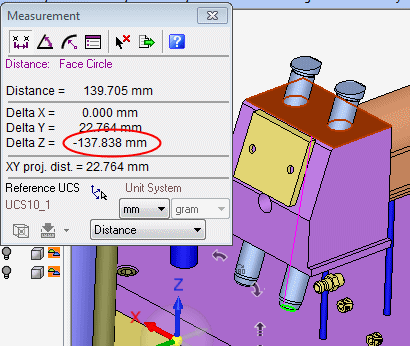

1. Measure the distance of the possible motion of the slider from the top face of the slider to the bottom point of the pin.

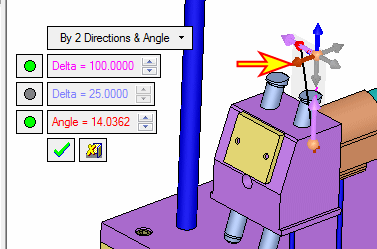

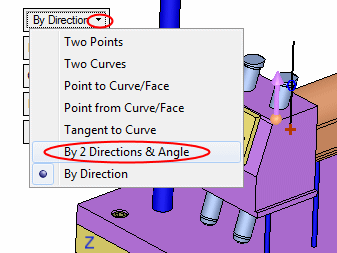

2. Apply a motion to the slider left. Set the motion as By 2 Directions & Angle.


3. Click the UCS to set one direction along the Y axis.
