Design Motion Analysis

Work With Motions Without Collision - Step 9

1. For this exercise, drag the work parts to the Ejection group.

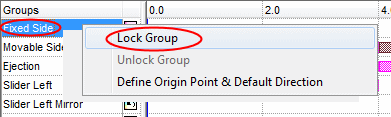

2. Lock the Fixed Side.

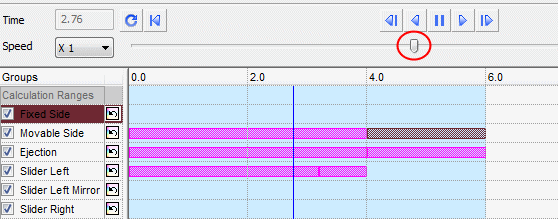

3. Turn on the model work parting sets. Drag the slide bar to view the motions.

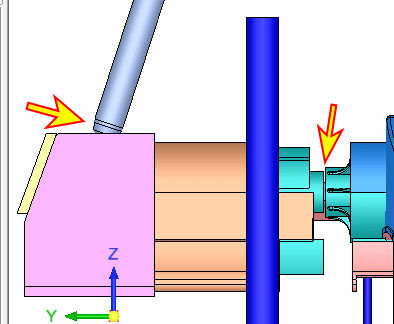

   Notice it seems slider does not interfere with the work part when it reaches the end of the pin, but you cannot be sure.
