Impeller 1

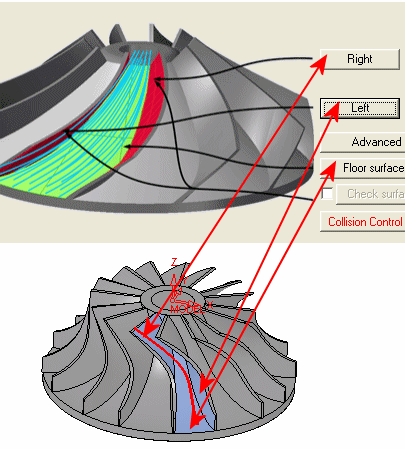

1. First, we will select the Geometry.
   It is apparent which Right, Left, and Floor faces need to be selected.


2. Set the Cut Control parameters.
   Set:

   •  Cutting method to Zigzag

   • Cut order to From Center Away.


3. Set the Maximum stepover to 2 and leave Stock remain at 0.5 mm for the Finishing Operations.

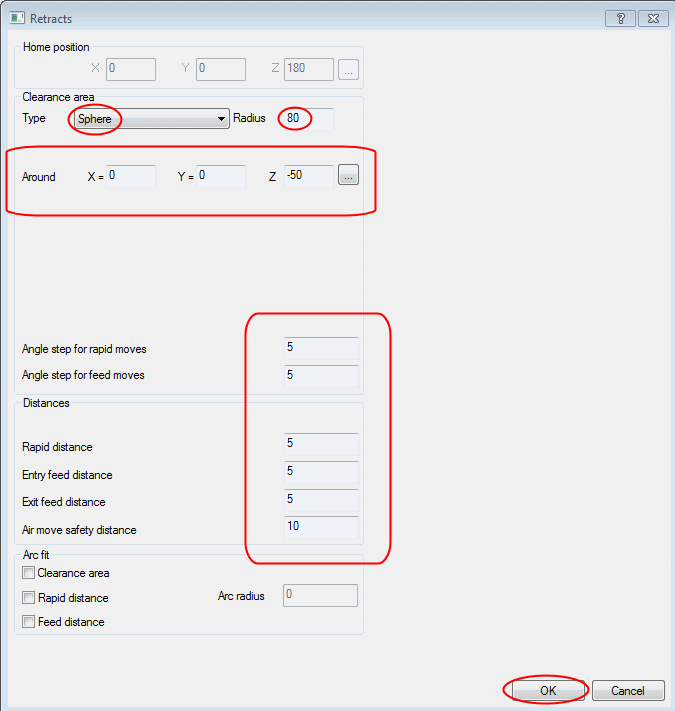

4. Click the Retracts tab and choose a Sphere larger than the radius of the part (which is about 70 mm) situated approximately at the center of the bottom.
5. Set the Rapid, Feed, and Safety Distances and click OK.
