Extensions: 2 Directions Extension

Access: Open this function from one of the following locations:

Select Electrode > Geometry > Extensions from the menu bar.
Select Extensions from the Electrode Guide.

Required Step 2

Create faces that are extended in two directions.

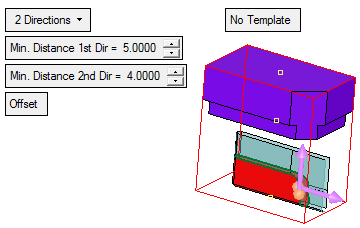

This option creates an extension out of a complex 3D contour that cannot be extended in one direction only. Direction arrows are displayed to define the extension directions.

Create a tangential extension to a specified length. Specify the minimum distance in both the directions.

For the Offset/Shift and Apply Template / No Template parameters, see Extensions Options and Results.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
