Addendum
Access: Open this function from one of the following locations:
-
Select Die Design > Geometry Manipulation > Addendum from the menu bar.
-
Select Geometry Manipulation > Addendum from the following Die Design Guide: Die Process Design Guide (Forming).
Create addendum faces between the blank faces and the binder. Addendum faces are those that bridge between the part (blank) faces and the binder faces. A predefined list of cross section shapes are available for the definition of the addendum faces.
Addendum faces are mostly required in Transfer and Regular Die design, where large-medium parts are transferred between multiple presses to complete them, such as shells, tube applications, frames and structural components.
|
The part and binder objects: |

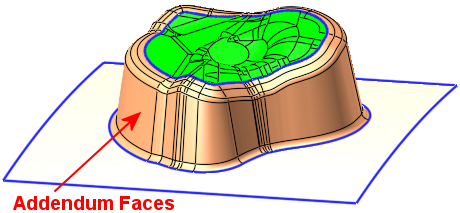

The resultant smooth addendum faces: |
|
|
|
General Interaction
The following is the Feature Guide for Addendum.
|
|
|
Tip:Required Step 1
: Pick a part object.
Required Step 2 : Pick an open smooth binder object or a plane.
Required Step 3
: Define the addendum type and set the parameters.
Optional Step 1
: Unpick boundary edges of the part where addendum faces are not to be created.
Detailed Interaction
See Options and Results.
|
