Assembly Drawing

Access: In the Electrode Tree, select the UCS or one or more of the Electrodes or Electrode Locations and then invoke this function from one of the following locations:

  • Select Electrode > Drawings > Create Assembly Drawing from the menu bar

  • Right-click in the Electrode Tree to display the popup menu and then select Assembly Drawing.

Create an assembly drawing for the selected electrode, as defined in the Electrode Preferences. This function is available only when the assembly is active. An assembly drawing is created for selected locations under the UCS in the Electrode Tree.

Example assembly drawing

Create electrode drawings

  1. Activate the electrode assembly.

  2. Select the appropriate position in the Electrode Tree - see below.

  3. InvokeInvoke (for more, click Access at the top of this Help topic) the Create Electrode Drawing function.

Depending on the number of electrode locations and your selection point in the Electrode Tree, the assembly drawing may contain a single or multiple electrode locations in the drawing - see below.

Selection Point in the Electrode Tree

The drawings created by running this function depend on the number of electrode locations and your selection point in the Electrode Tree:

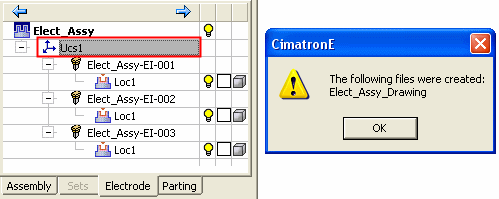

  1. If you select the UCS in the Electrode Tree and then run the function, the assembly drawing is created showing all the electrode locations under the UCS. For example:

Note: The prefix of the assembly drawing file name consists of the name of the assembly.

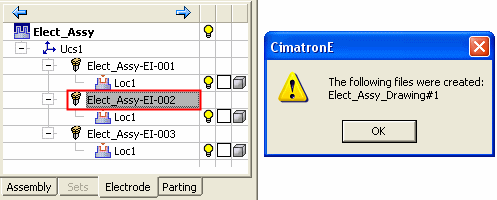

  1. If you select an Electrode or Electrode Location in the Electrode Tree and then run the function, the assembly drawing shows only that electrode location . For example:

Note: If an assembly drawing file with the same name already exists. the drawing name is appended with the suffix #<n> (where <n> is the number of the files with the same name).

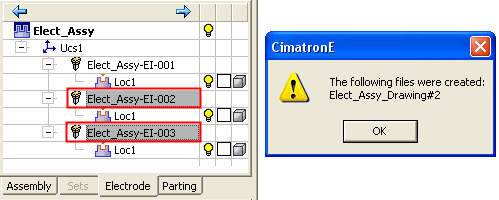

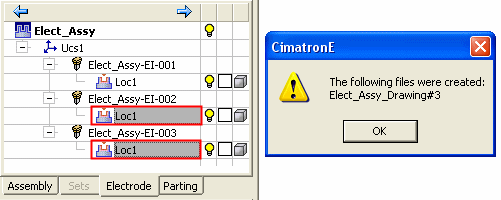

  1. You can also select multiple Electrodes or Electrode Locations in the Electrode Tree and then run the function. In this case the assembly drawing shows each of the items selected. For example:

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
