Electrode Tree

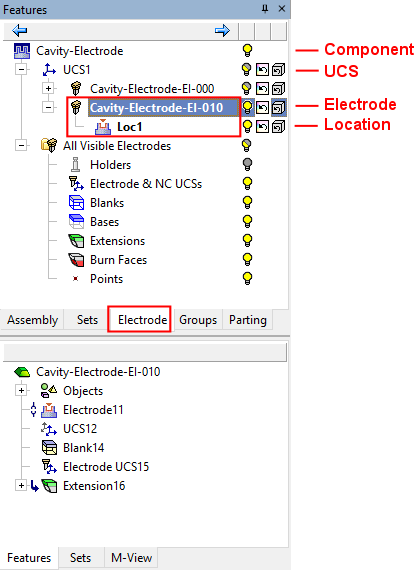

When an electrode has been extracted, the Electrode tab appears next to the Assembly Tree area. This tab displays the Electrode Tree which displays the electrode hierarchy (Component > UCS > Electrode > Location). (See the Assembly Tree for an explanation of the display symbols that appear in the Electrode Tree). The Electrode assembly is also displayed in the Assembly Tree.

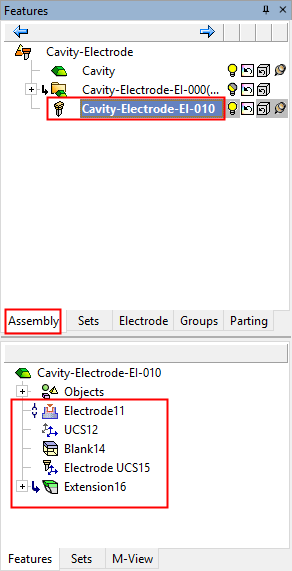

The Electrode Tree items consist of a Component, UCSs, Electrodes and Locations. The Electrode assembly is also displayed in the Feature Tree.
|
Assembly Tree and Feature Tree |
Electrode Tree |
|
|
|
|
Electrode Tree: |
A number of operations can be performed from the Electrode Tree; these include performing operations on multiple entities in the tree and using popup submenus.
Note: Double clicking a tree item (root, electrode or location) activates it.
|
