Pocket Design : Editing the Pocket

MoldDesign automatically creates the Pocket cut and does the cutting analysis. The advanced user can control these using the editing options.

Editing the Pocket Object Parameters

Editing the Pocket Cut Operation

Editing the Pocket Object Parameters

Use this option to edit the shape of the pocket part.

  1. Activate the required assembly.

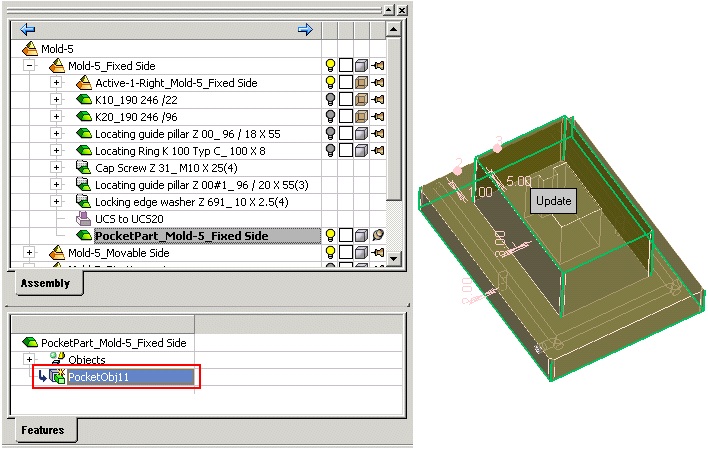

  2. Either double-click the object in the tree or in the display area.

  1. Edit the numerical parameters.

Editing the Pocket Cut Operation

Use this option to add / remove components to / from the list of the cut components.

  1. Right-click on the PocketCut feature in the Feature Tree. In the popup menu that appears, select Edit the Cut Objects or Edit the Cutting Object.

See also:
