Check & Fix Entities

These problematic entities are those with geometric or topological problems that ACIS (the geometric engine) cannot operate correctly.

Using different methods, such as Healing, Splitting/Fair unsmooth faces, Tolerant Modeler, etc., the tool will fix the following problems:

• Invalid Entities

• Small Faces

• Heavy Faces

• Unsmooth Faces

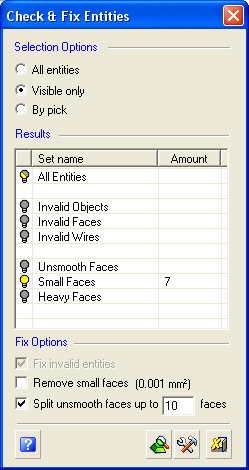

The Check & Fix Entities dialog is displayed. This dialog contains the following sections:

In this topic: Dialog structure Interaction Dialog Buttons Buttons: Help Check Entities Fix Entities Close

Dialog Structure

The dialog is divided into the following sections:

Selection Options

Results

Fix Options

Selection Options

The following selection options are available for checking entities:

All entities	Include all entities in the file.
Visible only	Include only the visible entities.
By pick	Pick the entities to be checked.

Results

This section lists the created sets and the columns detail the type of problematic entity.

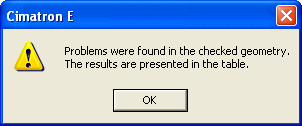

When the Check Entity button is pressed, the system checks the part. If problematic entities are found, the following message is displayed. For example:

Press OK to display a breakdown of the types of problematic entities. For example:

Press the appropriate Hide or Show button to display the relevant problematic set in the graphic area.

Note: The recorded number of problematic entities may be less than the number of entities displayed since an entity may belong to more than one set (overlap).

Fix Options

The following options are available for fixing entities:

Fix invalid entities	Fix most of the problems mentioned above.
Remove small faces	Remove faces that are smaller than the area defined. See Small Faces.
Split unsmooth faces	Split one or more unsmooth faces at points where the surface is not smooth. The parameter limits the number of faces that can be produced from one face. See Unsmooth Faces.

Interaction

1. In the Selection Options, select the entities to be checked.

2. Press the Check Entities button to start the checking process.

3. Analyze the results.

4. Based on your analysis of the results, select a Fix Options strategy and press the Fix Entities button . The function fixes the problems you specified and automatically re-checks for remaining problematic entities. Depending on your Fix Options selection, a number of iterations of steps 3 and 4 may be required to fix all the problematic entities.

Dialog Buttons

	Check Entities: Check for problems in the entities specified.
	Fix Entities: Fix any problematic entities according to the selected Fix Options.
	Close: Exit the function.
	Help: Access the Online Help.



Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
