Connect Component : Concentric

Access: Open this function from one of the following locations:

Create connections between components by defining constraints.

Position the selected components (cylinders) so that they share the same center point.

A concentric constraint can be used in the following cases:

  • A concentric constraint can be applied between two axial entities (lines, circles or cylinders) and implies that the axes are identical.

  • A point can also be made concentric with an axial geometry and will then lie on the axis.

Required Step 1

  1. Pick the component entities to be connected.

  2. Pick two points, edges, faces, planes, axes or UCSs and then <exit><exit>(middle mouse button). If you select a second entity from the same component, your second selection will replace the first. The first selected entity moves towards the second selected entity.

Example

1. Face selected:

2. Edge selected:

Notes:

  • A connect relation will not be created between two components of the same sub-assembly when the assembly is active.

  • A connect relation will not be created if none of the selected components belongs to the active assembly.

Required Step 2

  1. Set the connection options by defining constraints. These constraints involve Connect Relations (Angle, Coincident, Concentric, Distance, Parallel, Perpendicular and Tangent) and Alignments (Align and Anti-Align).

  2. The constraints that are available (and the selected default) depend on the types of geometry selected for the connect operation. For example, the Concentric constraint is not available for face to face connects and, of the available options, the Coincident constraint is automatically selected, by default.

    For example, depending on the types of geometry selected, the following constraints may be displayed:

    Face to Edge

    Edge to Edge

    Face to Face

    Edge to Face

  3. To define the connection, click the Concentric buttonConcentric button. Use Alignments to specify the connect solution required.

    Example

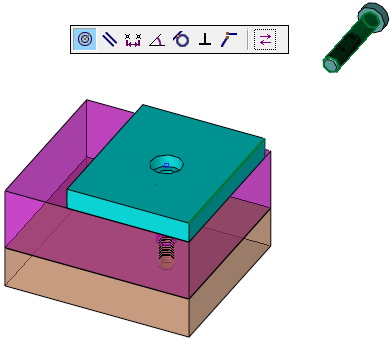

    Concentric Anti-Align:

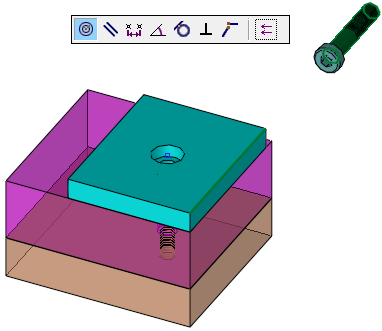

    Concentric Align:

    See Options and Results for the optional steps. These are only available when positioning a component specific UCS (User Coordinate System) to another component specific UCS, or a face or plane or cone face.

  4. Click in the Feature Guide to preview the result.

  5. Click OKOK or ApplyApply in the Feature Guide to complete the function.
