Delete Forming Shape
: Options and Results
Access: Open this function from one of the following locations:
-
Select Die Design > Forming Shapes > Delete from the menu bar.
-
Select Forming Shapes > Delete from the following Die Design Guide: Die Process Design Guide (Forming).
Delete a forming shape from the forming environment.
Required Step 1
: Pick the Forming Part(s) to Delete
This step describes how to delete one or more forming parts.
-

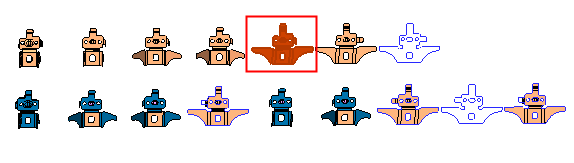

Select the required forming part to delete. The selected part is highlighted in red, as shown below:
-

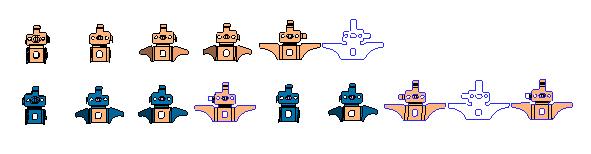

Click OKOK
or ApplyApply
in the Feature Guide to complete the function. The selected part is removed:
Additional Example: Multi Selections
If required, multi selection to remove many forming shapes, as described below.
-

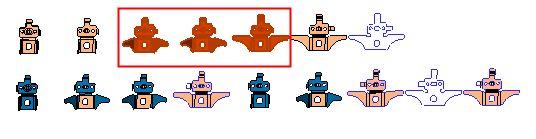

Select the required forming parts to delete. The selected parts are highlighted in red, as shown below:
-

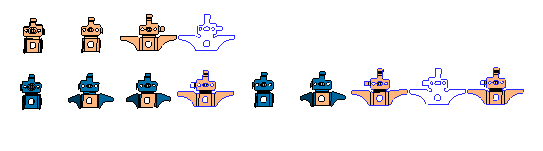

Click OKOK
or ApplyApply in the Feature Guide to complete the function. The selected parts have been removed,
|
