Delete Forming Shape from Die Set
: Options and Results
Access: Open this function from one of the following locations:
-
Select Die Design > Transfer Die Sets > Delete Forming Shape from Die Set from the menu bar
-
Select Transfer Die Sets > Delete Forming Shape from Die Set from the following Die Design Guide: Die Tool Design Guide (Transfer).
Delete forming shapes from die sets.
Required Step 1

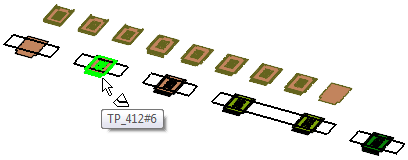

- Pick the forming shape(s) to be deleted.

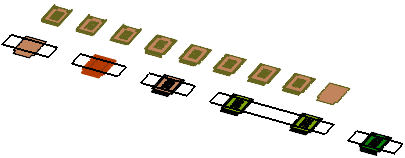

- The deleted forming shape is previewed at the selected station.
- Click OKOK
or ApplyApply
in the Feature Guide to complete the function.
|
