EDM Setup : Folder Parameters

Access: Open this function from one of the following locations:

Select Electrode > Tools > EDM Setup from the menu bar.
Select EDM Setup from the Electrode Guide Toolbar.
Right-click a Component , UCS , Folder , Electrode or Location in the Electrode Tree to display the popup menu and then select EDM Setup.

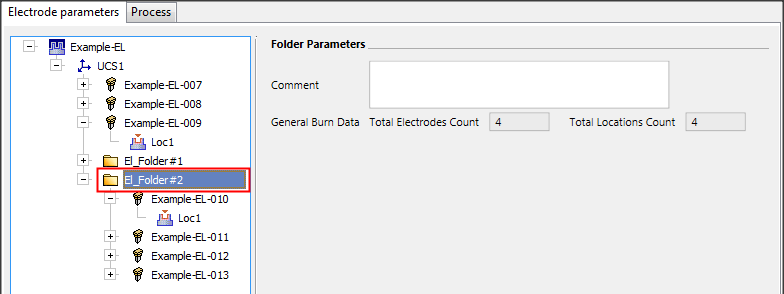

The EDM Setup Folder Parameters are displayed as follows (browse the EDM tree within the EDM Setup dialog to display the parameters relevant to the selected item):

When selecting the Folder, the following parameters are displayed:

Comment

Enter a comment if required.

General Burn Data

This area displays the following parameters:

Total Electrodes Count	The total number of electrodes under the folder.
Total Locations Count	The total number of locations under the folder.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
