Ejector Lock

Access: Open this function from one of the following locations:

Select Mold Design > Ejection > Ejector Lock from the menu bar, or
Select Ejection > Ejector Lock from the Mold Design Guide Toolbar.

Create a lock shape on ejectors and cutting objects. This function detects ejectors that need to be locked to prevent their rotation in the ejector plate and modifies the ejector head and the ejector cutting object according to the required lock type to create the appropriate pocket on the plate.

For example:

Different types of Ejector Locks may be used. The following are examples of the various types of Ejector Locks.

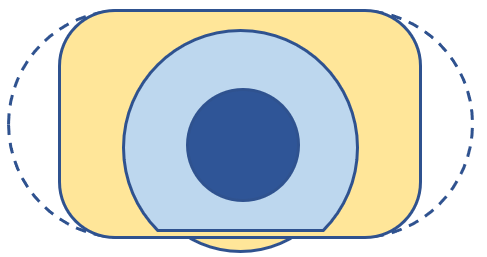

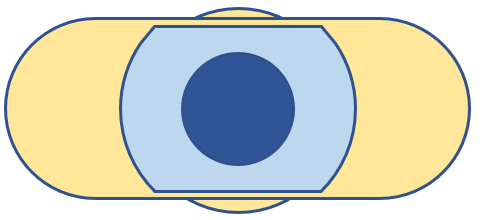

Pin Lock	Oval Lock	Circle Lock	Slot Lock

Ejector locks can be created globally on all ejectors (with different diameters) or just on selected ejectors. The ejector lock type and rotation angle can be changed locally.

General Interaction

The following is the Feature Guide for Ejector Lock.

Tip: You can open the Feature Guide at any time by right-clicking the mouse in the graphic display area.

Required Step 1 : Pick the ejectors to make a lock.

Required Step 2 : Define the type of ejector and the rotation angle.

Note: It is recommended to run this function after Ejector Trim is used and before Ejector Pocket is executed.

Detailed Interaction

See Options and Results.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
