Extend by Draft Angle

Access: Open this function from the following location:

  • Select Faces > Create Faces > Extend by Draft Angle from the menu bar.

Extend (unbend) parts along the draft angle of round faces.

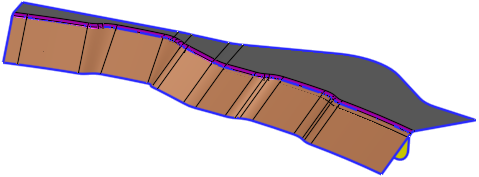

The part below is to be extended along the round (purple) faces by a draft angle of 45°.

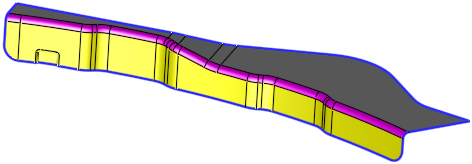

Result:

General Interaction

The Feature Guide for Extend By Draft, is shown below:

   Tip: You can open the Feature Guide at any time by right-clicking the mouse in the graphic display area.

Required Step 1 : Pick face(s) and define the direction.

Required Step 2 : Define the draft angle and other parameters.

Optional Step 1 : Pick patch faces; pick (unpick) edges to add (ignore) the extension.

Detailed Interaction

See Options and Results.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
