Face-Face Round

Access: Open this function from one of the following locations:

  • Click the button in the toolbar.

  • Select Solid > Modification > Face-Face Round from the menu bar.

Create round faces or surfaces between two groups of faces.

Note: This function can give the same results as the Round function when used on adjacent faces, and can also create rounds between non-adjacent faces. Round can only be used on existing edges.

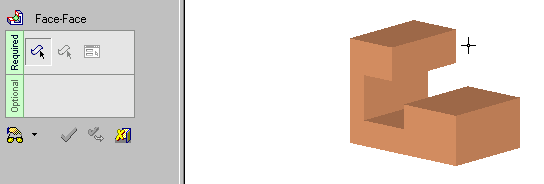

Demo: Press the button below to view a short movie demonstrating the function:

Practice: Press the button below to open Cimatron with a practice ELT file similar to that used to create the movie (if the relevant feature already exists in the ELT file, you can either edit it or delete it and create a new feature).


General Interaction

The following is the Feature Guide for Face-Face .

   Tip: You can open the Feature Guide at any time by right-clicking the mouse in the graphic display area.

Required Step 1 : Select the first face or group of faces.

Required Step 2 : Select the second face or group of faces.

Required Step 3 : Set the rounding parameters.

Detailed Interaction

See Options and Results.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
