Information

Access: Open this function from one of the following locations:

Select Die Design > Tools > Information from the menu bar.
Select Information in the Strip Popup Menu or Forming Shape Pop Menu (when in the Strip Forming Shape or Forming Shape environment respectively).

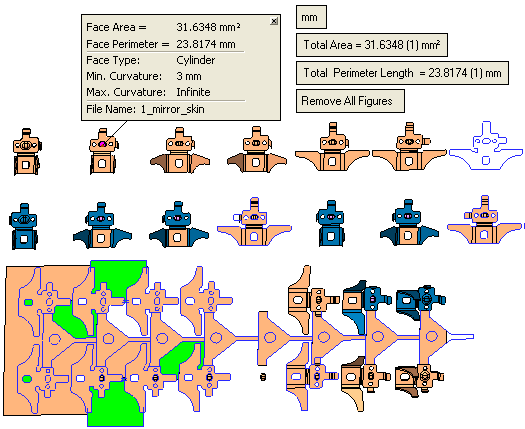

Display tooltip information about the selected entities.

Note: You can also display information regarding selected faces in the Unfold procedure by moving the mouse over the selected face for which you want to display the required information. The information displayed in the Unfold procedure is Original Radius, Natural Plane Radius, Arc Length, Natural Plane Arc Length.

General Interaction

The following is the Feature Guide for Information.

Tip: You can open the Feature Guide at any time by right-clicking the mouse in the graphic display area.

Required Step 1 : Select the faces.

Detailed Interaction

See Options and Results.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
