Hide Uninvolved Interference Check
Access: Open this function from one of the following locations:
-
Select the Hide UninvolvedHide Uninvolved icon
from
the toolbar.One of the following Interference Check icons is displayed on the toolbar:
. This is
the icon of the last used Interference
Check function. Click the dropdown arrow adjacent to
this icon to display the other Interference Check functions
and select the required one.
-
Select Analysis > Interference Check > Hide Uninvolved from the menu bar.
Hide components that do not interfere with other components.
The Interference Check Tools are displayed if an assembly is active.
Only components between which an interference was detected, will be displayed (together with relevant surrounding parts). Use this option to improve clarity around the intersecting components.
Note: If an interference has been detected, the intersecting curves between the components are outlined in the interference result color defined in the Preferences.
|

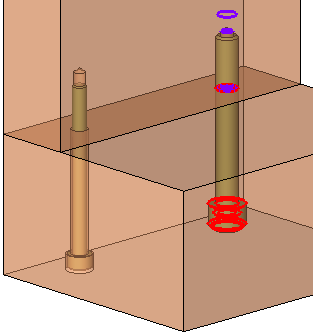

All components are displayed. |

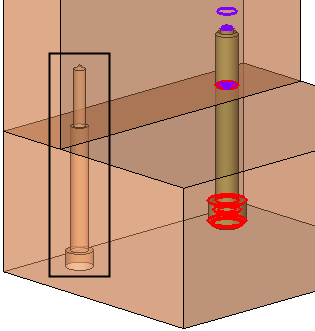

Hide Uninvolved activated. All components that are not involved in the interference check, are hidden. In this case the left cap screw is hidden, displaying only its cutting object. |
|
|
|
|
