Intersection Curve

Access: Open this function from the following location:

  • Select Wireframe > Derived Curves > Intersection from the menu bar.

Create intersection curves between objects, faces, and planes.

Demo: Press the button below to view a short movie demonstrating the function:

Practice: Press the button below to open Cimatron with a practice ELT file similar to that used to create the movie (if the relevant feature already exists in the ELT file, you can either edit it or delete it and create a new feature).





General Interaction

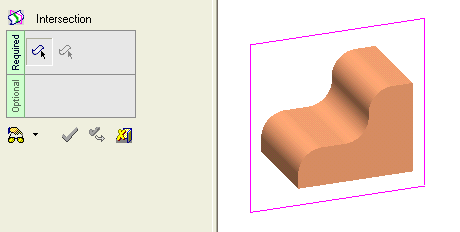

The following image shows the Feature Guide for Intersection Curve.

   Tip: You can open the Feature Guide at any time by right-clicking the mouse in the graphic display area.



Required Step 1 : Pick the first group of faces (one or more).

Required Step 2 : Pick the second group of faces and/or planes (one or more).

Detailed Interaction

See Options and Results.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
