Local-Node License - Client Side

Access: Open this function from the following location:

This product supports Local-Node Licensing (a Local-Node license is also called a Node-Locked or Standalone license).

The license file configuration determines the available licenses.

The License Manager defines the path to the local license file (received from your Provider or Reseller), which your product uses to verify the license. The License Manager also displays license information per product and version number.

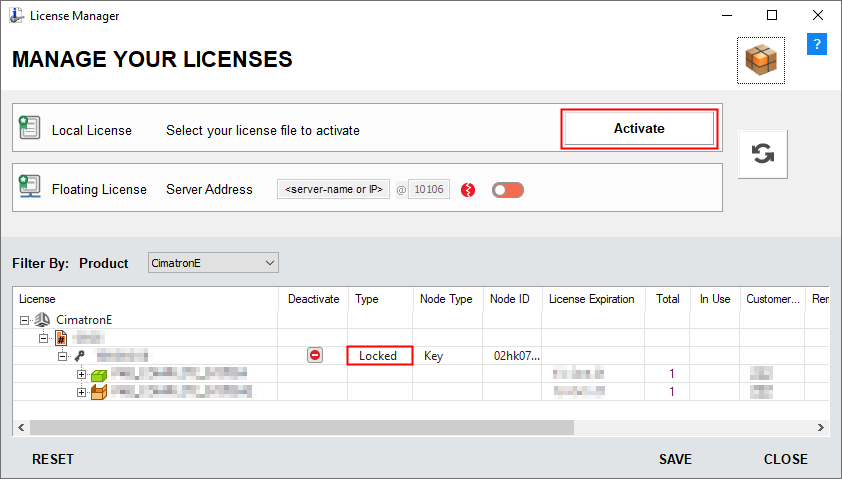

The example below shows Cimatron license information.

To set up the Local-Node License Information:

  1. InvokeInvoke (for more, click Access at the top of this Help topic) the License Manager tool. An empty License Manager dialog is displayed showing the client computer's installed software. For an explanation of this dialog, see the License Manager Dialog Options and License Manager Dialog Buttons.

  2. Click Activate to browse and select the license file(s) received from your Provider or Reseller - see Get Node IDs.

  3. The License Manager shows the license configuration of all the license(s) located in the Local License Folder. For additional information on activation, see Activate License.

  4. Click Save.

  5. Click Close to close the License Manager dialog.

For an explanation of this dialog, see:

See also

Note: For more on licensing, contact your Provider or Reseller.

Some functionality may be dependent on the product package. Contact your Reseller if you require a license.
