Intermediate Curve
Access: Open this function from the following location:
-
Select Wireframe > Derived Curves > Intermediate Curve from the menu bar.

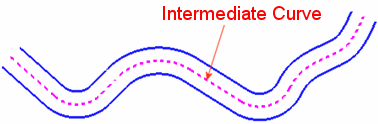

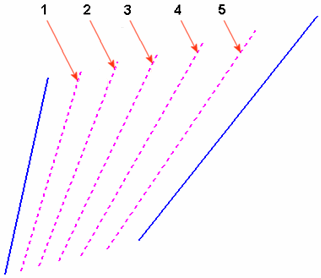

Create one or more an intermediate curves between two curves. Any number of intermediate curves can be created. If 2 points are selected, the result is an intermediate point (or a number of points as required).
This function may be used, for example, to divide an angle, place components on a part, define the split direction, or to find a centerline for machining purposes (to guide the path or orientation of the tool during NC programming).
 |
 |
Example
|

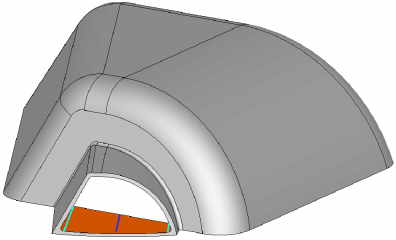

The parting line (DARK BLUE curve) was determined by the intermediate curve of the two LIGHT BLUE curves. |

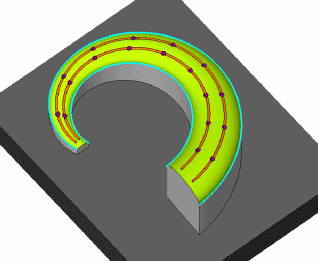

The location of the vacuum holes and center line of the vacuum slots of the fixture were defined using two intermediate curves. |
|
|
|
|
Below, the intermediate curve function improves the NC programming experience: |
|
|

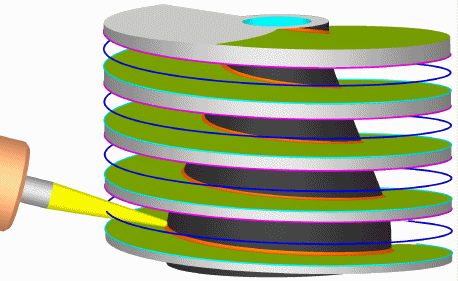

The ORANGE fillets in the screw are machined with a conic ball nose cutter. The DARK BLUE intermediate curve of the PURPLE and LIGHT BLUE contours controls the cutters 5-Axis orientation. |

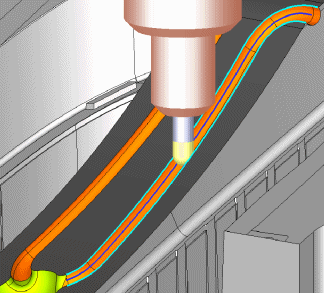

The 3D runner was machined by a ball-nose cutter along the DARK BLUE intermediate curve of the runner’s edges. Using the curve to guide the cutter and not the surfaces is faster and results in a smoother toolpath. |
|
|
|
General Interaction
The following image shows the Feature Guide for Intermediate Curve.
|
|
|
Tip:Required Step 1
: Pick the curves, wires, or points between which to create the intermediate curve(s)/point(s).
Detailed Interaction
See Options and Results.
|
