Fair Curve

Access: Open this function from the following location:

  • Select Wireframe > Modify Curves > Fair from the menu bar.

Change the shape of the curve by fairing it (smoothing and reducing the number of control points).

Demo: Press the button below to view a short movie demonstrating the function:

Practice: Press the button below to open Cimatron with a practice ELT file similar to that used to create the movie (if the relevant feature already exists in the ELT file, you can either edit it or delete it and create a new feature).





General Interaction

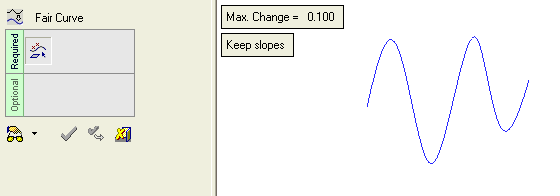

The following image shows the Feature Guide for Fair Curve.

   Tip: You can open the Feature Guide at any time by right-clicking the mouse in the graphic display area.



Required Step 1 : Pick the curve to be faired.

Detailed Interaction

See Options and Results.
