Convert PMI to Curve Text

Access: Open this function from the following location:

Select Tools > PMI > Convert to Curve Text from the menu bar.

Convert PMI Curve Text (created by the Curve Text PMI function) to standard wireframe curve text features.

This is useful when you wish to use the text wireframe for operations such as extrude. Note that the text is normally converted to wireframe when the part is imported to NC, Drafting, or to another part.

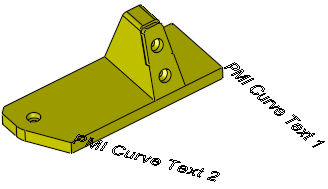

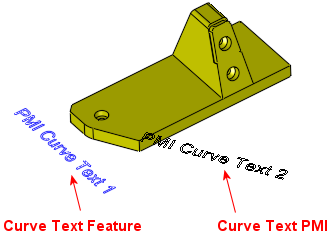

PMI curve text:	PMI curve text converted to curve text feature:

General Interaction

The following is the Feature Guide for Convert to Curve Text .

Tip: You can open the Feature Guide at any time by right-clicking the mouse in the graphic display area.

Required Step 1 : Pick the PMI curve text to be converted to curve text features.

Detailed Interaction

See Options and Results.
