Replace PMI Curve Text
Access: Open this function from the following location:
-
Select Tools > PMI > Replace PMI Curve Text from the menu bar.
Replace multiple Curve Text PMI annotations throughout the assembly. This replaces all instances of the selected text throughout the assembly.
|

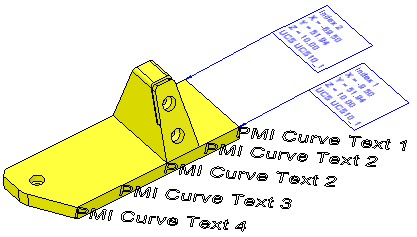

Original PMI curve texts: |

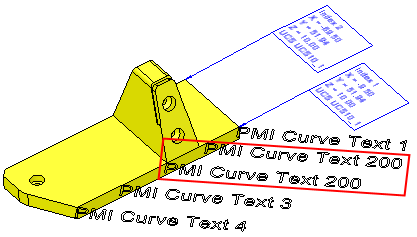

Replaced PMI curve text: |
|
|
|
General Interaction
The following is the Feature Guide for Replace PMI Text .
|
|
Remember: You can open the Feature Guide at any time on the graphic display area by right-clicking. |
Required Step 1
: Pick the PMI curve text to be replaced.
Detailed Interaction
See Options and Results.
|
