NC Preferences > Drill > Display
Access: Invoke this function from one of the following locations:
-
Select the Preferences button
from the Quick Access Toolbar, or -
Select Tools > Main Tools > Preferences from the menu bar.
Navigate to NC > Drill > Display.
Define the display attributes of items in the Automated Drill - Group and Sequence Manager.

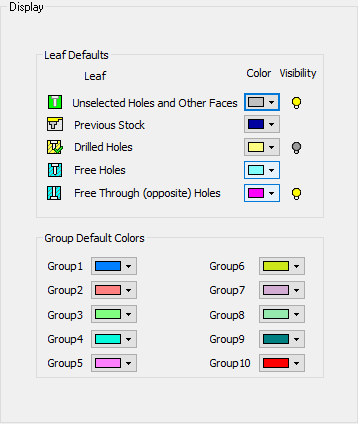

The Display dialog is displayed.
Interaction
-
Set the default color of specific groups of holes.
|
Leaf Defaults |
Define the default color and visibility status of items in the Automated Drill - Group and Sequence Manager. |
|
Group Default Colors |
Define the default color of groups of holes in the Automated Drill - Group and Sequence Manager. |
-
Press the appropriate approval option.
|
