Preview Layers

Access: Press the Preview button on the Work Mode Dialog when a procedure is open. Then hide/show the Layers.

Hide or Show (/) a preview of the Z layers as contours.

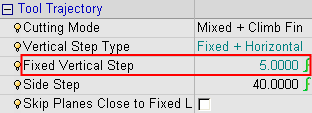

The preview is influenced by the Fixed Vertical Step value [example dialogexample dialog].

The following display characteristics of the layer can also be defined:

  • Color.

The layers will be spread equally from Z Top to Z Bottom, using the outer boundary of the Containment as the guiding shape.

Note: The Layers are a schematic drawing, not talking into account the following parameters: Machine Between Layers, Vertical Step Type.

Examples

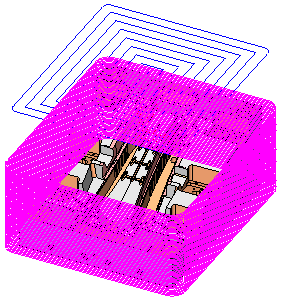

Pocket On -
Layers On -
Fixed Vertical Step = 0.1*tldi

Pocket On -
Layers On -
Fixed Vertical Step = 0.1*tldi

Pocket On -
Layers On -
Fixed Vertical Step = 0.8*tldi

Pocket On -
Layers On -
Fixed Vertical Step = 0.8*tldi
